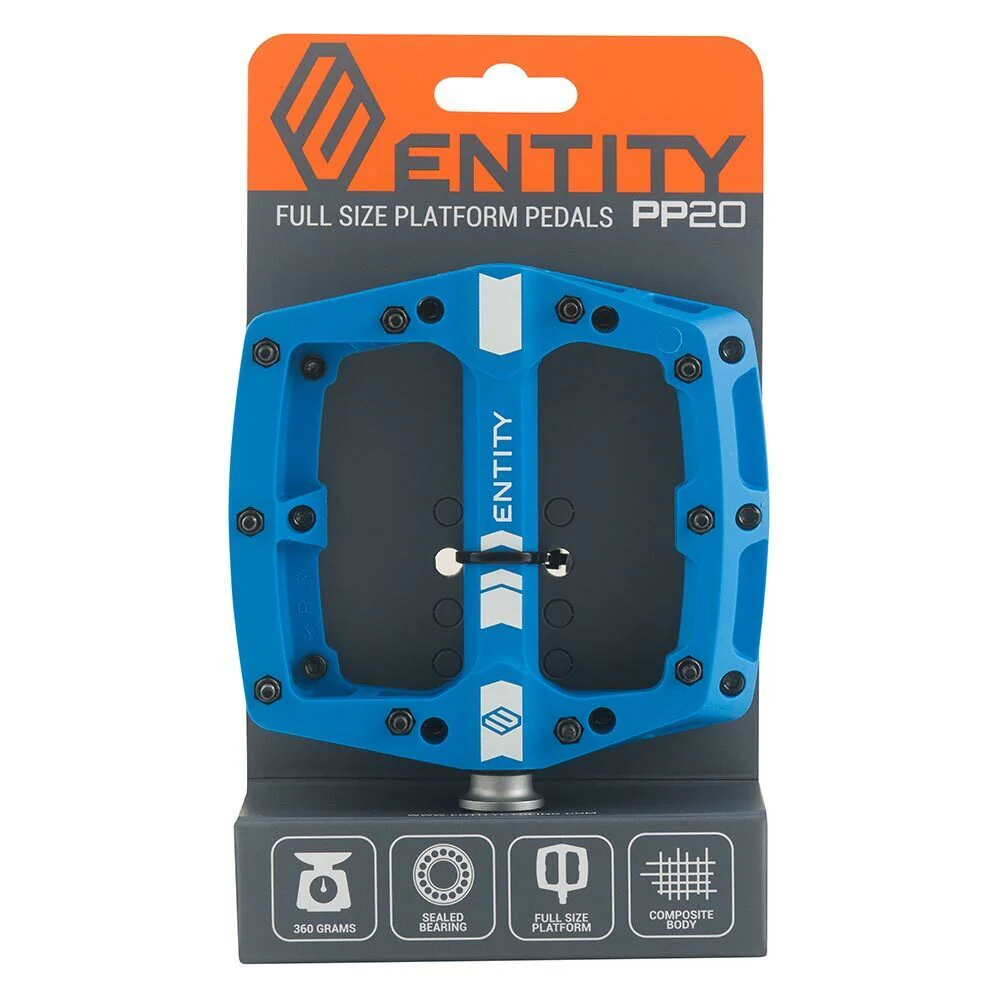

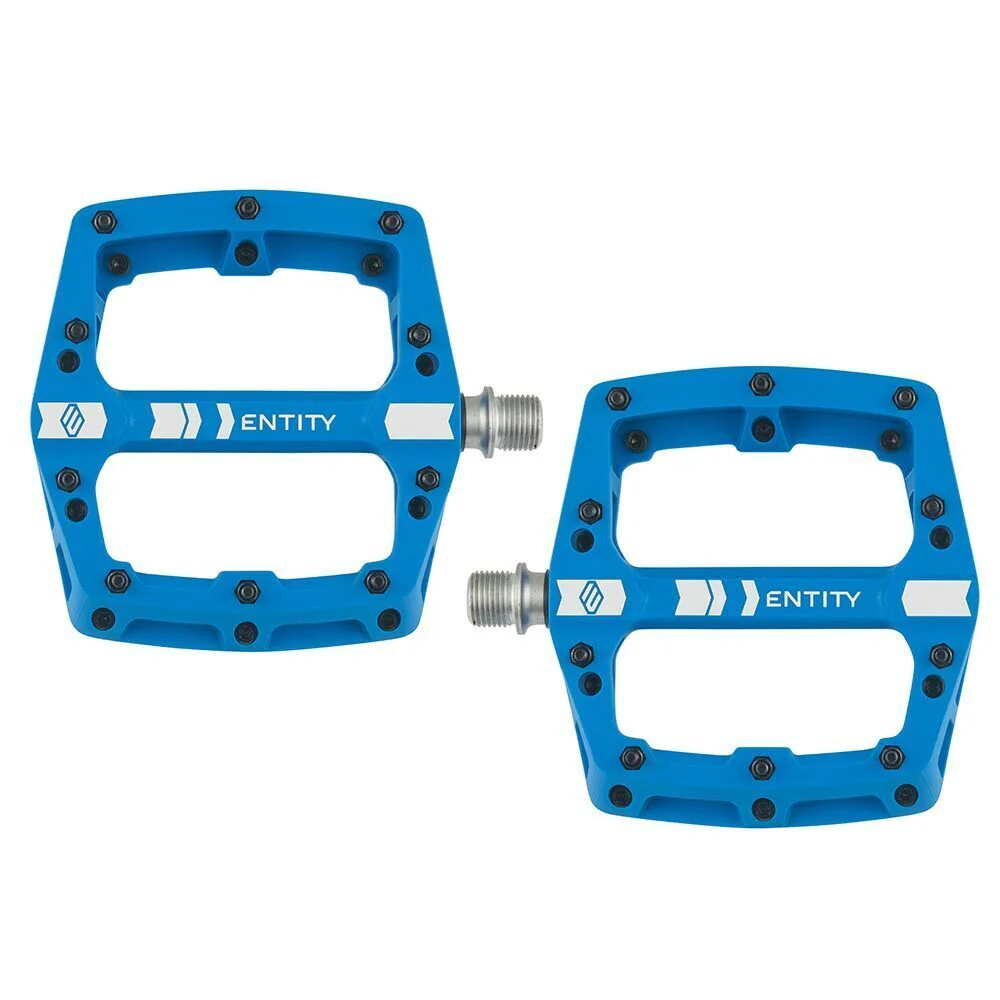

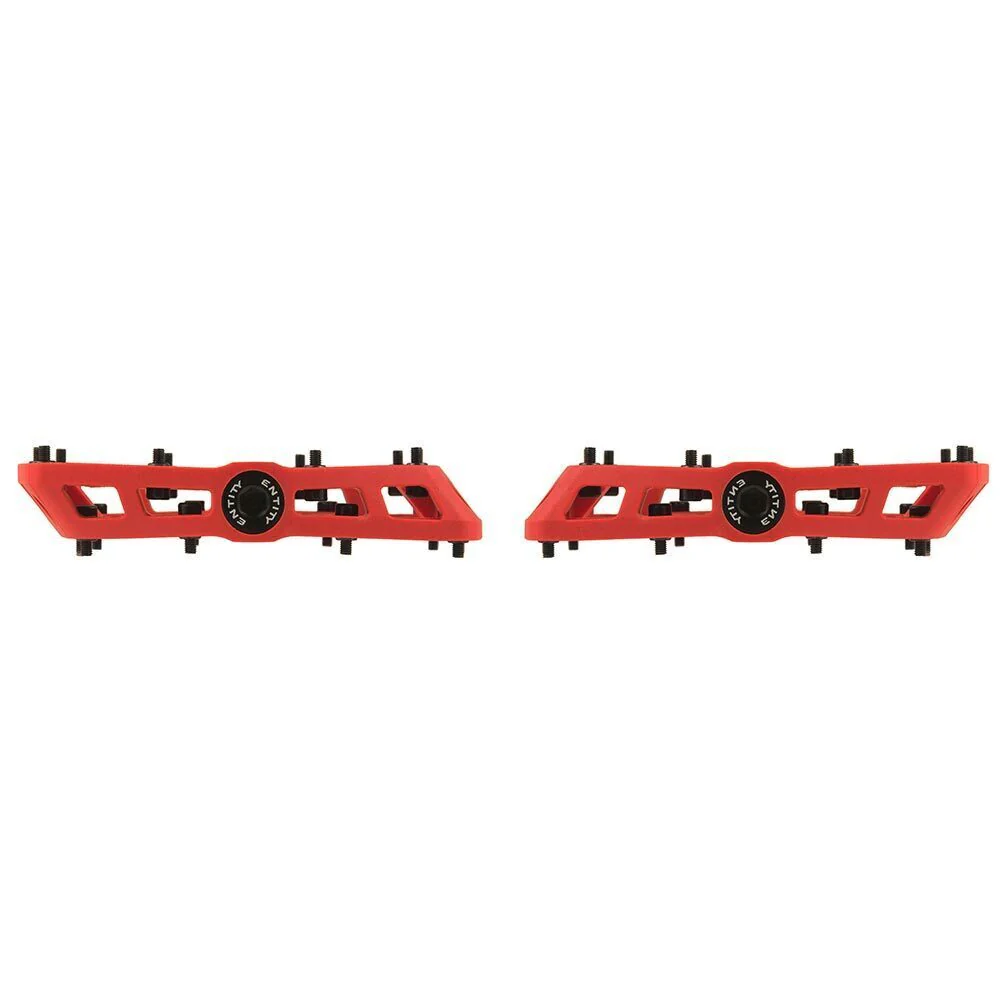

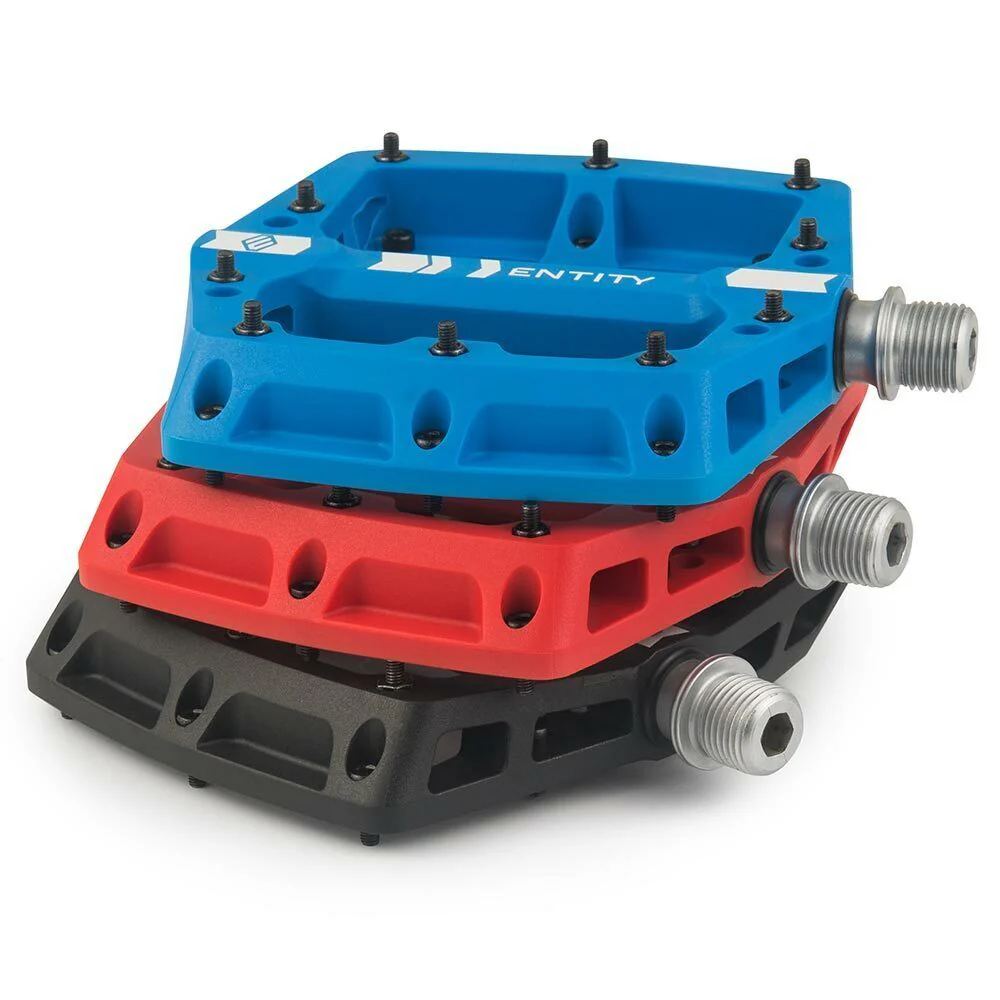

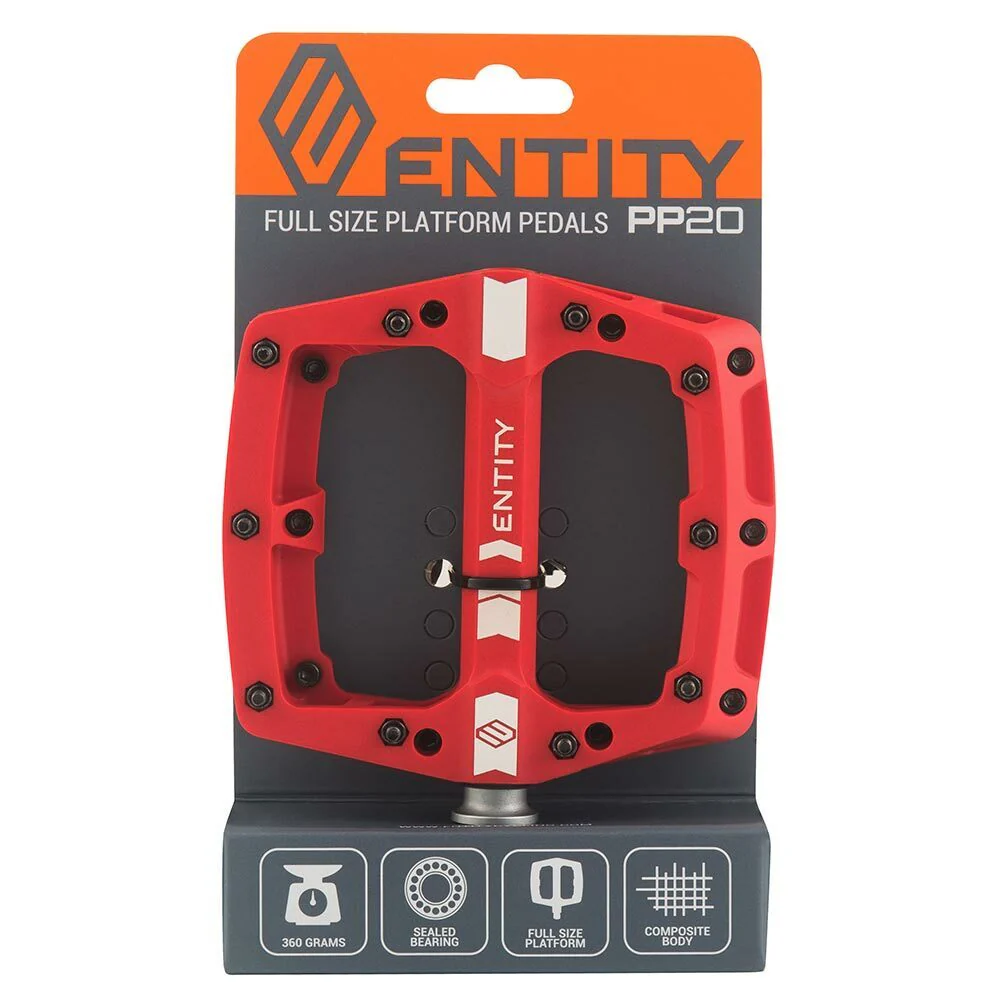

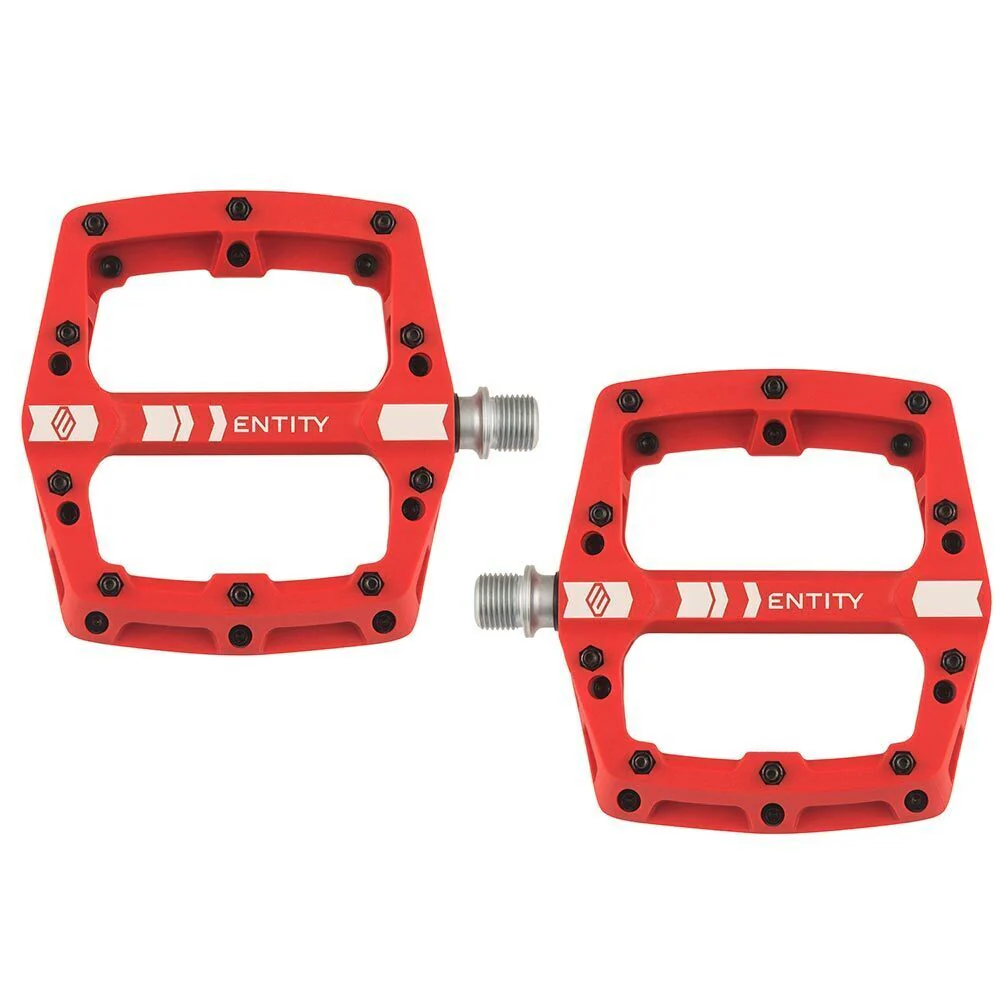

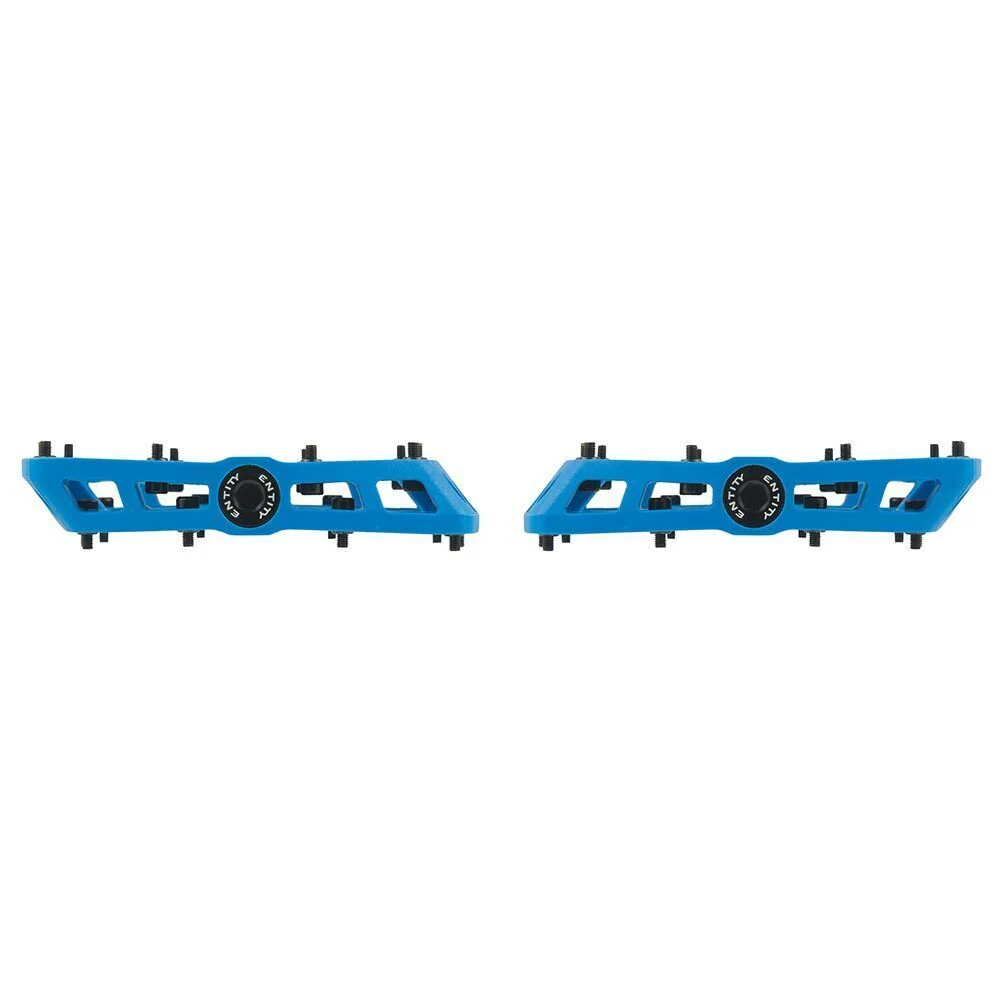

Entity PP20 Composite Flat Pedals

*Pedals are sold as a pair (left and right).

@media (min-width:992px) { .imageSimpleGrid_row { display: flex; align-items: center; justify-content: center; } .imageSimpleGrid_image-wrap { max-width: 60%; width: 100%; } .imageSimpleGrid_content-wrap { width: 100%; max-width: 481px; padding: 0 0 0 50px; } .imageSimpleGrid { padding: 0 0 3em; } } .imageSimpleGrid_image-wrap figure { height: auto; } .image-hover-scale:hover img { transform: scale3d(1.075, 1.075, 1); } .imageSimpleGrid_row.reverse { flex-direction: row-reverse; } .description img { max-width: 100%; height: auto !important; } .boa_product .m-top { margin-top: 4em; } .imageSimpleGrid { padding: 15px 0; } p.product__text.text-center { font-size: 1.3em !important; } .feature-title { font-weight: 700; line-height: 1.4; margin: 1em auto 0.5em; font-size: 1.1em; text-transform: uppercase; } .feature-text { line-height: 1.8; padding-bottom: 15px; } .reverse .imageSimpleGrid_content-wrap { padding: 0 50px 0 0; } .image-hover-scale { overflow: hidden; } .panel-product .panel-body .product__blurb .product__text { font-size: 1.3em !important; } .image-hover-scale:hover > img { transition: transform 0.5s ease 0.05s, opacity 0.3s !important; transform: scale3d(1.075, 1.075, 1); } .image-hover-scale * { transition: all 0.2s ease-out; } .image-hover-scale:hover img { transform: scale3d(1.075, 1.075, 1); }

PP20

The Entity PP20 are new school composite flat pedals that we've engineered to far surpass ISO MTB standards, plus trail (and air) tested beyond sanity under the feet of Entity sponsored free rider Tom Wrigley. These pedals are just as at home on your commuter or trail bike through to a downhill or dirt jump sled.

Durable design

At 105mm wide, the PP20 platform is the optimal size for the widest range of shoe models and sizes; stable grip and support with decent ground clearance.the CNC machined 9/16" Cr-Mo spindles are designed to handle the biggest jumps and gnarly cases without bending, whilst supporting the pedals to spin smoothly on the inboard LSL bushing and outboard sealed industrial bearing.

Built For Safety and Durability

The Entity PP20 are new school composite flat pedals that we've engineered to far surpass ISO MTB standards, The PP20's glass fibre reinforced nylon construction provides a lightweight yet highly durable body.

Designed For Riders

The pedals contain 20 replaceable pins which extend 4.5mm from the ergonomically contoured concave pedal surface. Each pin is installed from the underside and threaded securely through a nyloc hex nut so grip can be custom tailored to the riders desire.

Lightweight

At just 360g for a pair, the PP20's are over 100g lighter than the smaller platform Shimano XT M8020 pedals.

Model Comparison Chart

	PP15	PP16	PP20
BODY MATERIAL	Ultra-thin Aluminium body	Durable and lightweight nylon composite body.	Durable and lightweight nylon composite body
PLATFORM SIZE	Full size platform 110x100mm (including axle)	Ergonomically designed, 97 x 106 x 16.5mm platform.	Ergonomically designed, 105 x 113mm concave platform
SPINDLE	Machined Cr-Mo spindle	Strong & stiff CNC machined 9/16" Cr-Mo spindle.	Strong & stiff CNC machined 9/16" Cr-Mo spindle
BEARINGS	Sealed sleeve bearings	Smooth spinning sealed DU bushing paired with sealed bearing.	Smooth spinning sealed LSL bushing paired with sealed industrial bearing
PEDAL PINS	12 replaceable pins on each pedal.	16 replaceable pins on each pedal.	20 replaceable pins on each pedal
COLOURS	Hard anodized Black	Black / Blue / Orange / Red	Black / Blue / Red
WEIGHT	300 grams	362 grams	360 grams
Price	From $44.99	From $34.99	From

Select Colour

From $10.15

Original: $29.00

-65%

Entity PP20 Composite Flat Pedals—

$29.00

$10.15
