2021 Polygon Vander T8 Frame Only

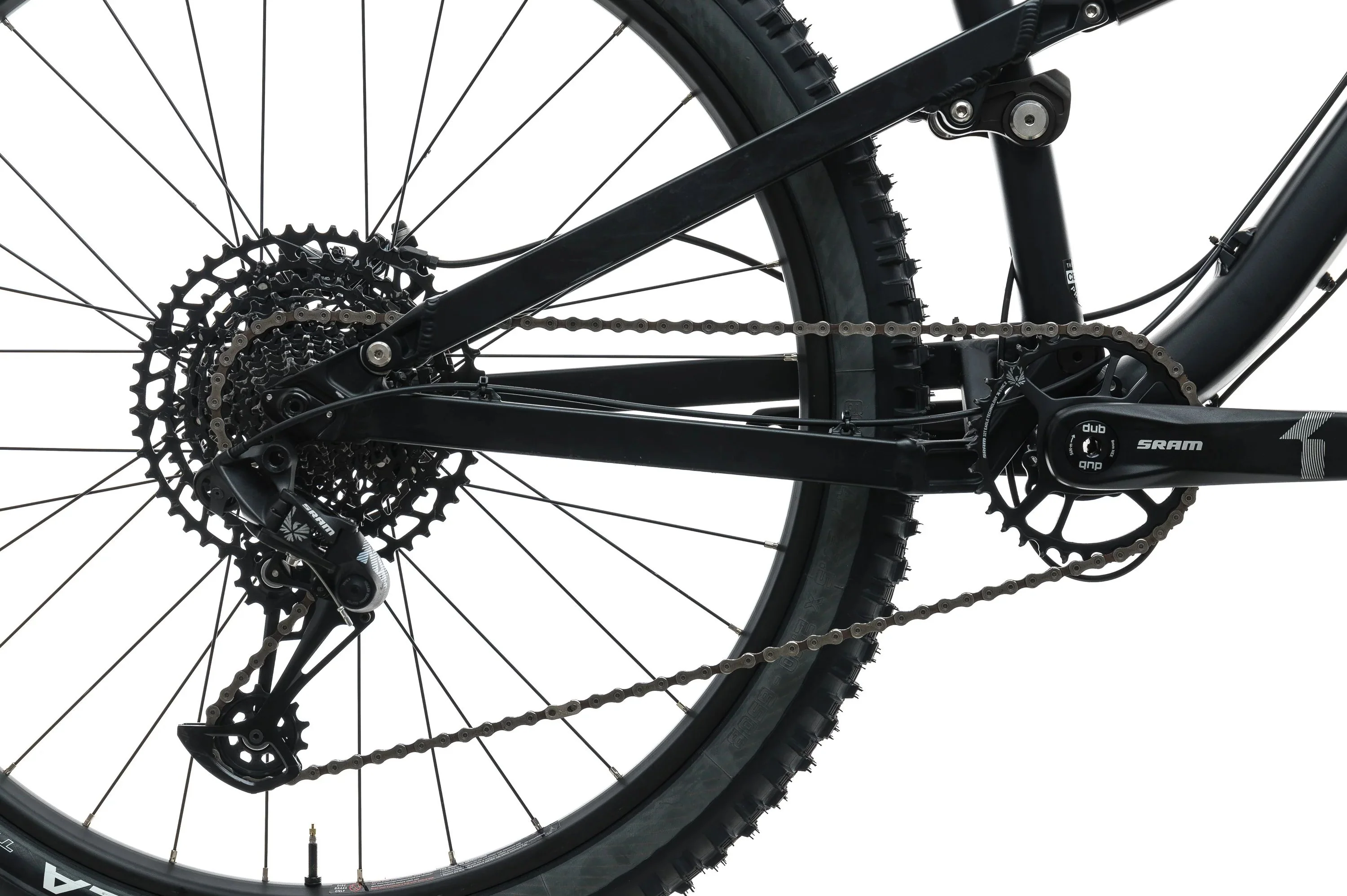

Product image 1
1 / 3

2021 Polygon Vander T8 Frame Only

Vander T8 Frame (No Shock)

A 27.5" trail frame with 130 mm rear travel, designed around a 190 × 51 mm shock. Ideal for a custom build or frame swap.

Frame only — no shock, thru axle, headset, or seat clamp included.

Fit notes

  • Rear shock: 190 × 51 mm, hardware 8 × 22 mm
  • Rear hub: 142 × 12 mm
  • Rear axle: 165 × M12 × 1.5
  • Headset: ZS44/28.6 upper | ZS56/40 lower
  • Wheel size: 27.5"
  • Front travel (design): 140 mm
  • Rear travel: 130 mm
  • Crank length (ref): 170 mm

Geometry (mm unless noted)

  SM MD LG XL
Wheels 27.5" 27.5" 27.5" 27.5"
Stack 583 587 597 606
Reach 423 442 460 476
Stack / Reach Ratio 1.38 1.33 1.30 1.27
Top Tube Length 585 605 626 645
Seat Tube Length 375 430 480 530
Seat Tube Angle (°) 72.1 72.1 72.1 72.1
Head Tube Length 110 115 125 135
Head Tube Angle (°) 66 66 66 66
BB Drop 24 24 24 24
BB Height 334 334 334 334
Front Centre 719 740 762 782
Chainstay Length 438 438 438 438
Wheelbase 1156 1177 1199 1219
Fork Rake (Offset) 43 43 43 43
Trail 111 111 111 111
Standover Height 731 748 778 793
Front Travel (design) 140 140 140 140
Rear Travel 130 130 130 130
Crank Length (ref) 170 170 170 170
```
Select Size
Select Colour
Select Wheel Size
From $50.52

Original: $144.33

-65%
2021 Polygon Vander T8 Frame Only—

$144.33

$50.52

Product Information

Shipping & Returns

Description

Vander T8 Frame (No Shock)

A 27.5" trail frame with 130 mm rear travel, designed around a 190 × 51 mm shock. Ideal for a custom build or frame swap.

Frame only — no shock, thru axle, headset, or seat clamp included.

Fit notes

  • Rear shock: 190 × 51 mm, hardware 8 × 22 mm
  • Rear hub: 142 × 12 mm
  • Rear axle: 165 × M12 × 1.5
  • Headset: ZS44/28.6 upper | ZS56/40 lower
  • Wheel size: 27.5"
  • Front travel (design): 140 mm
  • Rear travel: 130 mm
  • Crank length (ref): 170 mm

Geometry (mm unless noted)

  SM MD LG XL
Wheels 27.5" 27.5" 27.5" 27.5"
Stack 583 587 597 606
Reach 423 442 460 476
Stack / Reach Ratio 1.38 1.33 1.30 1.27
Top Tube Length 585 605 626 645
Seat Tube Length 375 430 480 530
Seat Tube Angle (°) 72.1 72.1 72.1 72.1
Head Tube Length 110 115 125 135
Head Tube Angle (°) 66 66 66 66
BB Drop 24 24 24 24
BB Height 334 334 334 334
Front Centre 719 740 762 782
Chainstay Length 438 438 438 438
Wheelbase 1156 1177 1199 1219
Fork Rake (Offset) 43 43 43 43
Trail 111 111 111 111
Standover Height 731 748 778 793
Front Travel (design) 140 140 140 140
Rear Travel 130 130 130 130
Crank Length (ref) 170 170 170 170
```
